Custom Aluminum Radiators
Custom aluminum radiator development from drawings, samples or installation requirements. Compare the references below by tank layout, hose connections and mounting arrangement.
Radiator references
4 components

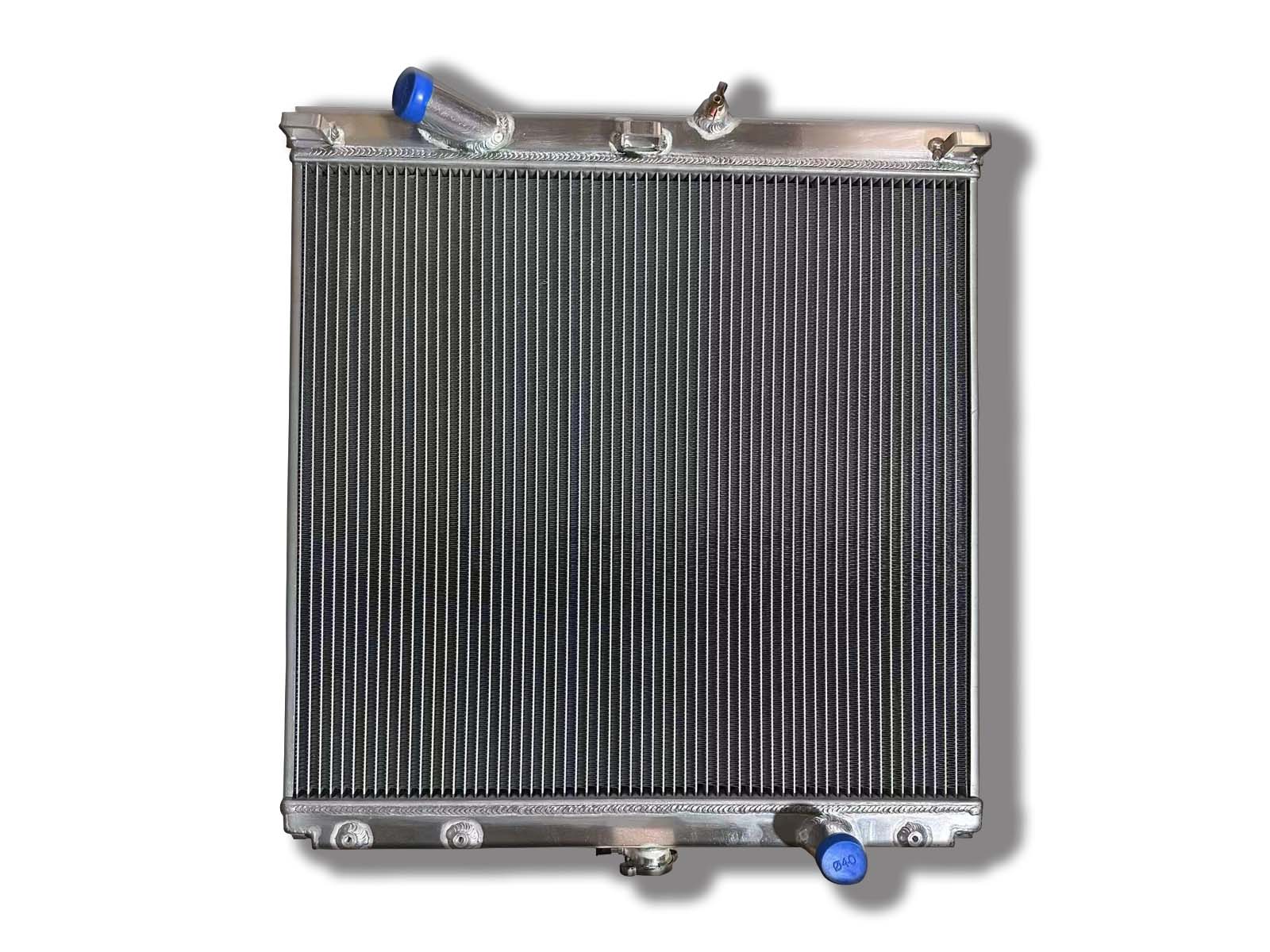

CSSX001
All-Aluminum Automotive Radiator
View component details

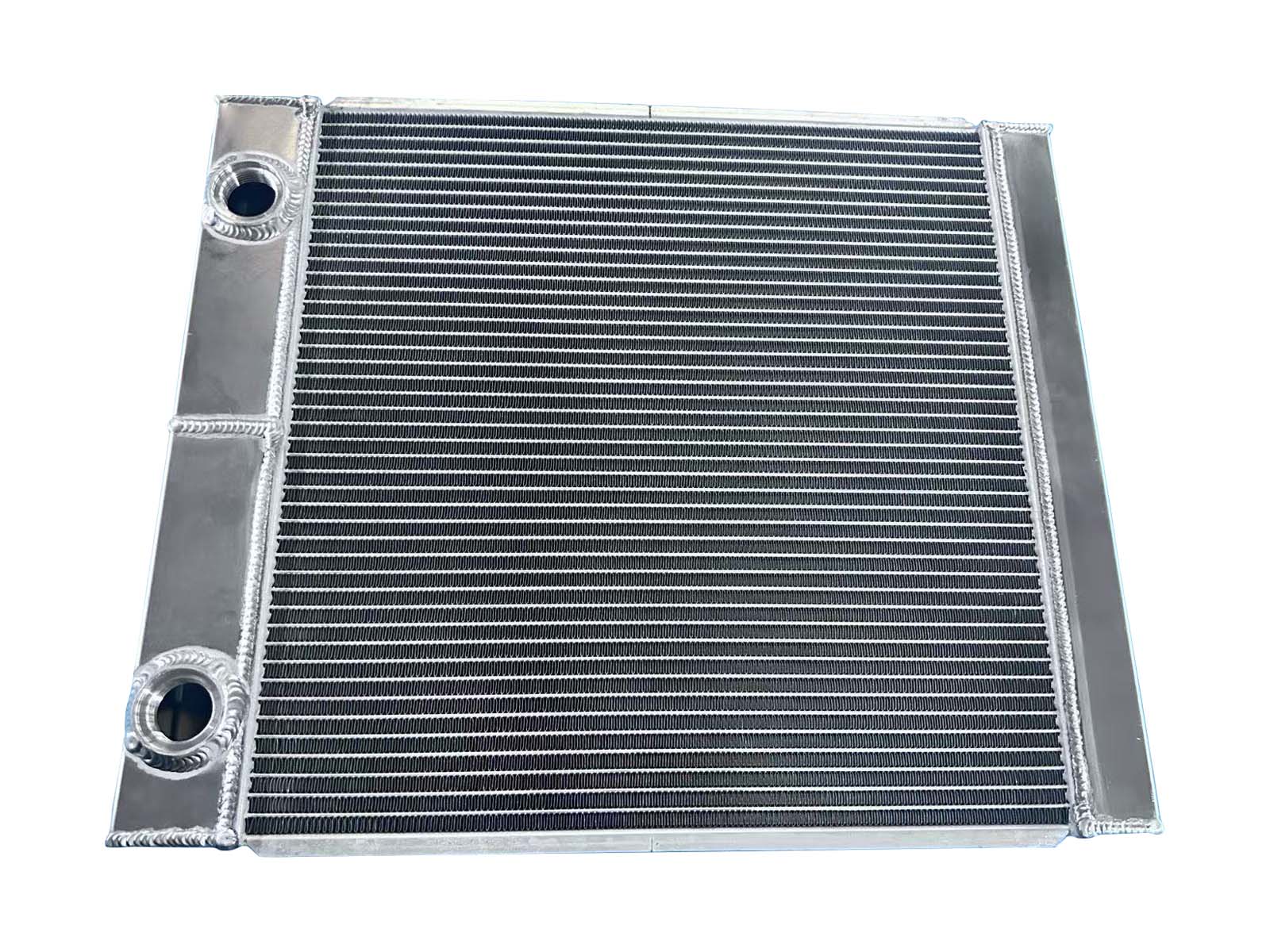

CSSX002
All-Aluminum Tube-and-Fin Radiator
View component details

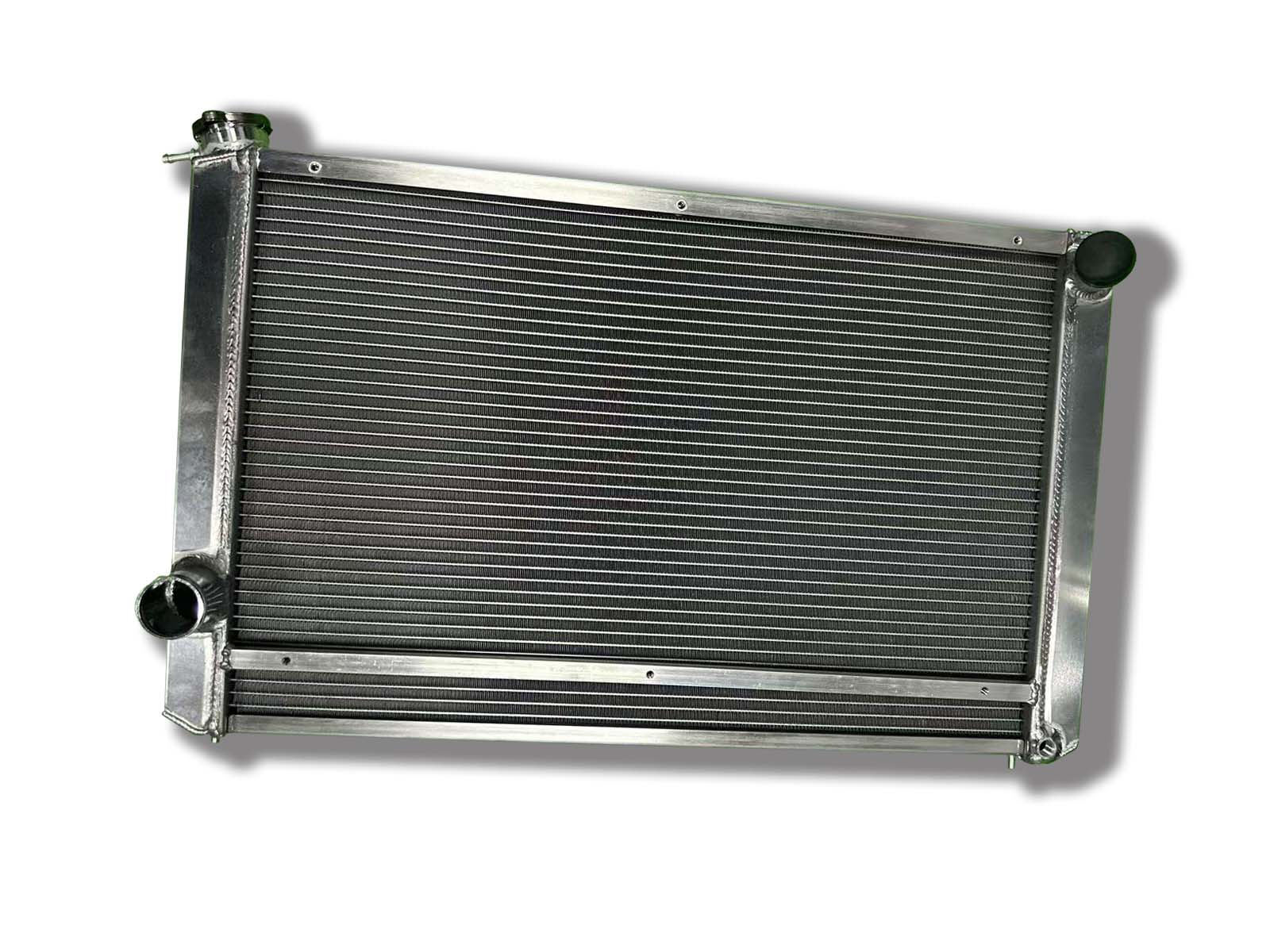

CSSX007
Radiator with Side Tanks and Offset Pipe Necks
View component details
CSSX421
Radiator reference
View component detailsDevelopment references, not a stock list or a guarantee of vehicle fitment.
All productsConfiguration review
- Core and tanks
- Share the installation envelope, core dimensions and tank arrangement. A thicker core is not automatically a fit or performance improvement.
- Ports and cap neck
- Identify hose diameters, port direction, cap position, drain and access for installation.
- Mounting and fan clearance
- Provide bracket datums, fastener details, fan/shroud clearance and nearby obstructions.
- Validation
- Agree critical dimensions, test conditions and acceptance criteria for the defined revision.
Specifications and scope
A reference component describes that part only. Dimensions, fitment and test requirements for your project need a defined revision and approval.
Specifications are confirmed per project. Share your drawing or sample for review.
What to send first
FAQ
Short procurement answers for this product program.
Can you manufacture a radiator from an old sample?
Yes. Buyers can provide sample photos and measured dimensions. A physical sample can also be used when exact fitment details are difficult to describe.
Can the radiator be upgraded from copper brass to aluminum?
In many applications, yes. The design needs to confirm fitment, mounting, cap position, inlet and outlet layout, and cooling target.
Do you support private label radiator programs?
Yes. Private label packaging, repeat SKU planning and inspection requirements can be prepared for distributors.
