CSSX007 Radiator with Side Tanks and Offset Pipe Necks

Public component note

Configuration visible in these views

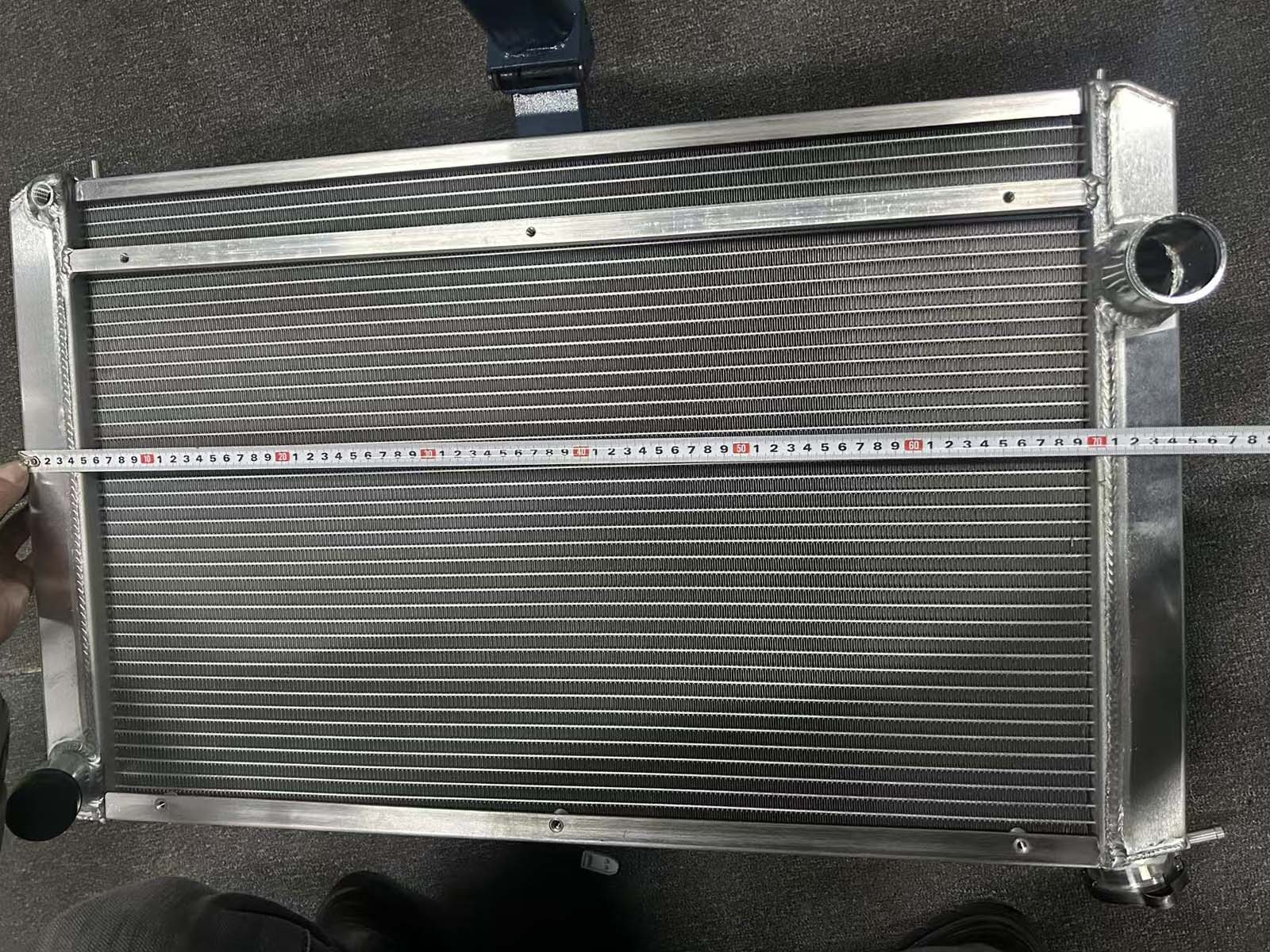

Rectangular finned core between two side tanks, with large round pipe necks at diagonally opposed positions. Views show a capped filler neck, a small side tube, drilled strips and projecting pins.

Visible configuration

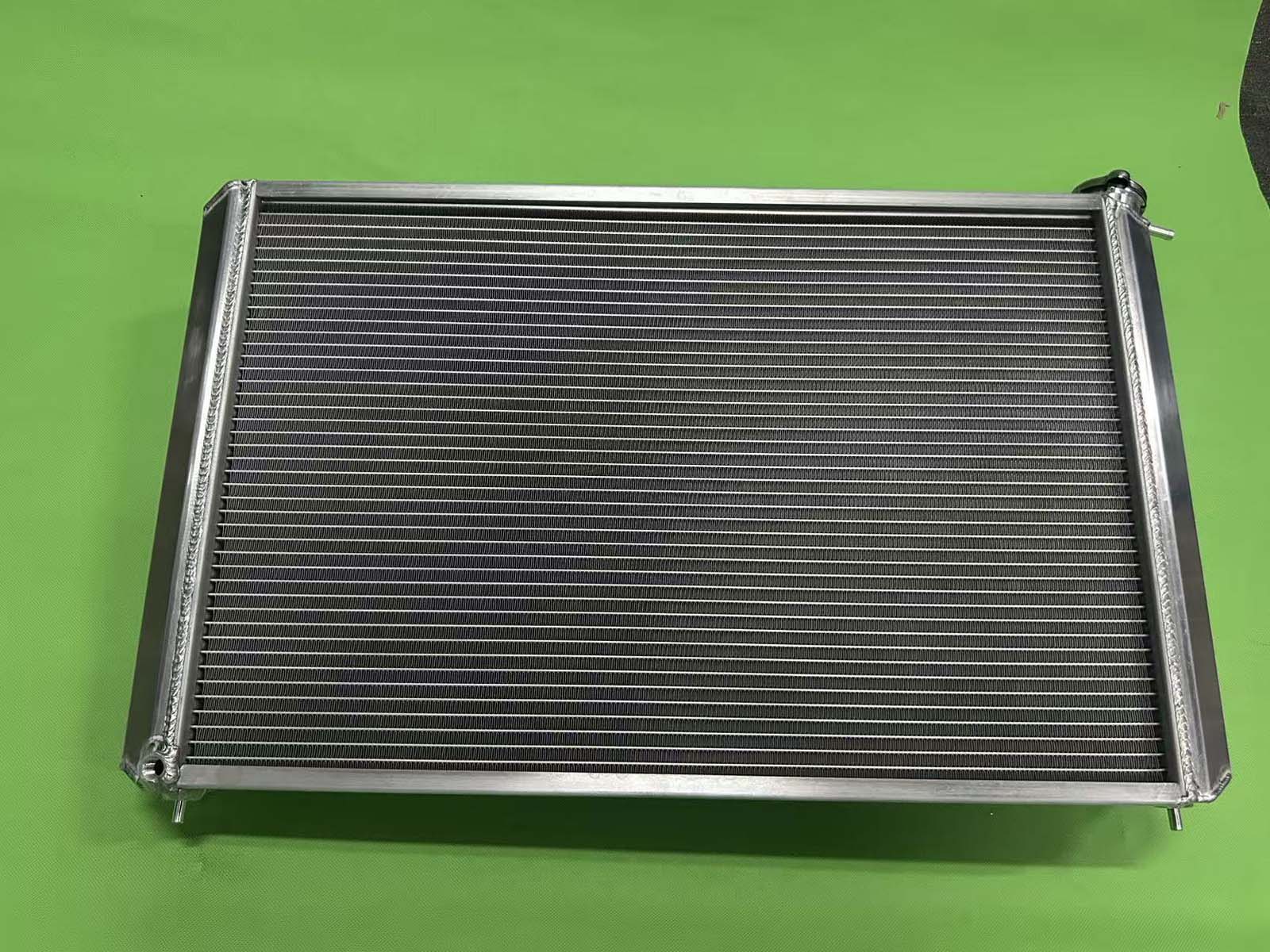

Visible structureRectangular finned core bordered by two elongated tanks, with visible seams along the tank edges.

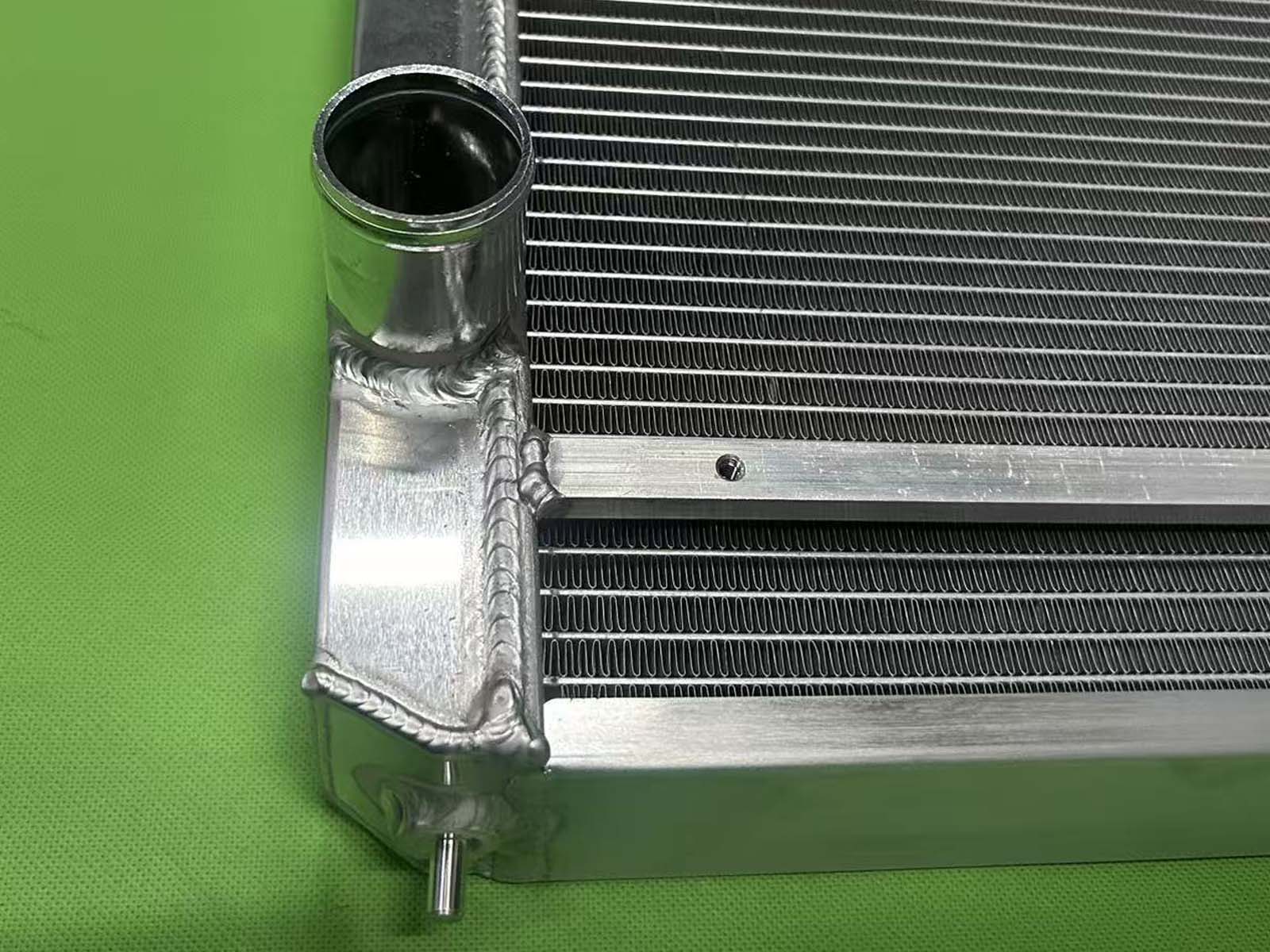

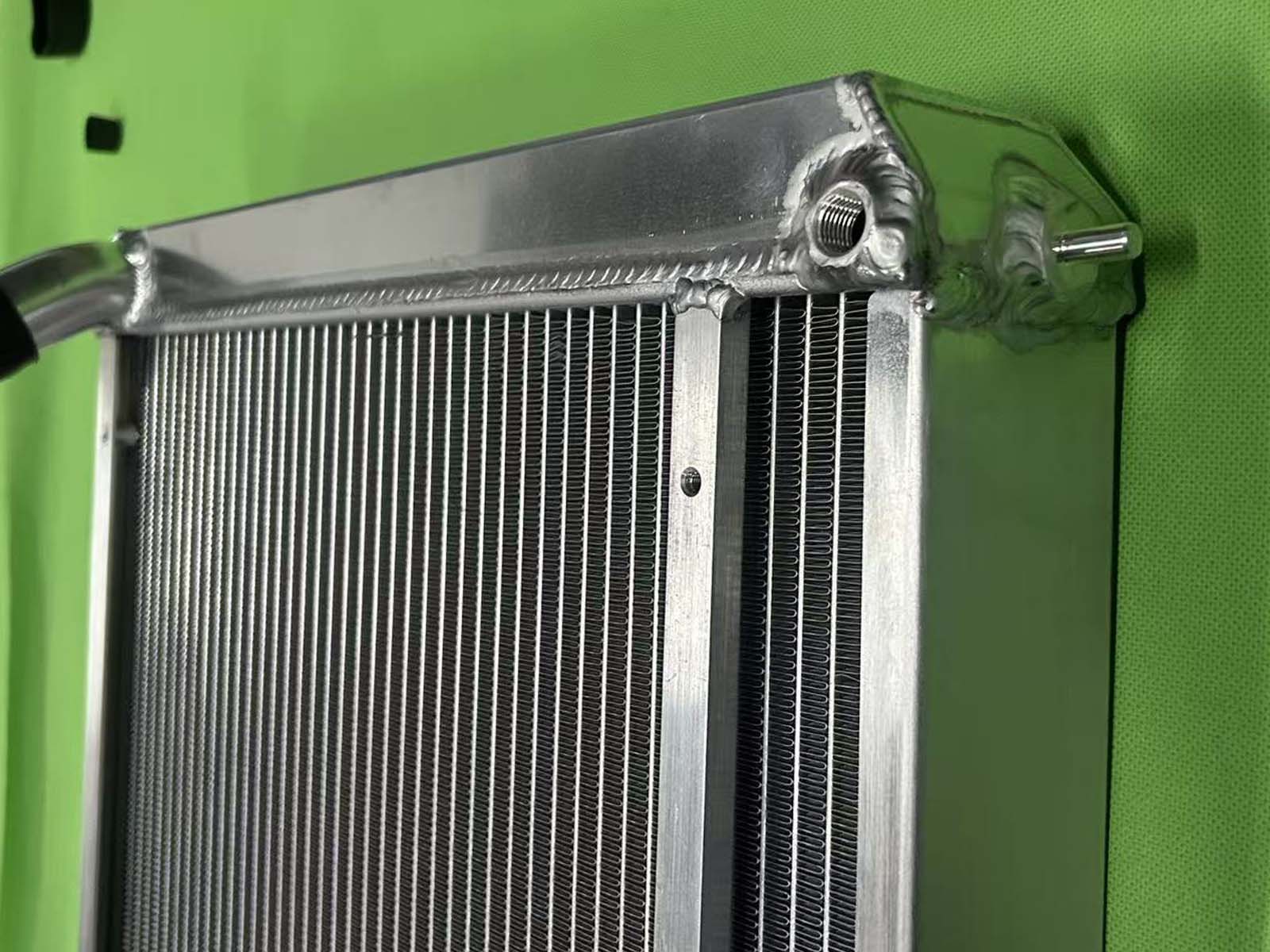

Ports and fittingsTwo large round pipe necks, a capped filler neck with a small side tube, and a threaded opening near a tank end.

Mounting layoutTwo projecting pins and drilled horizontal strips are visible in the full-face views.

Tank layoutElongated tanks run along opposite sides of the core. The filler neck is at one end of a tank.

Specifications and application

Contact us with this reference to confirm dimensions, connections and mounting requirements.

Vehicle fitment and performance are not verified by these images. Confirm the application, revision and acceptance requirements before ordering.

Discuss a related requirement.

Use this reference to identify the structure you need, then confirm the dimensions and validation plan for your project.
